COLD ROOM PUF PANEL

Name: COLD ROOM PUF PANEL
Brand: DELIGHT KITCHEN EQUIPMENT
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Square Foot

Get a Price/Quote

MOQ : 1 Square Foot

COLD ROOM PUF PANEL Specification

Type
Cold Room PUF Panel

Material
Polyurethane Foam (PUF) with Pre-painted Galvanized Iron (PPGI) sheet

Power
N/A for Panel only (dependent on cold room equipment)

Power Source
N/A for Panel only

Voltage
N/A (Panel itself does not require voltage)

Capacity
Customizable based on room size

Loading Capacity
Customizable as per requirement

Automatic Defrost Operation
No (Dependent on refrigeration unit)

Operating Temperature
-40C to +80C

Temperature Range
-40C to +80C

Dimension (L*W*H)
Standard sizes: 2m x 1m x 60mm; Custom sizes available

Weight (kg)
Approx. 13-15 kg/m

Color
White/Grey (Customizable)

Sound Insulation
Good soundproofing properties

Usage
Cold Storage, Freezer Rooms, Pharmaceutical Storage, Food Processing

Installation
Easy to assemble with interlocking joints

Thermal Conductivity
0.023 W/m·K

Service Life
15+ years under standard conditions

Moisture Resistance
High

Surface Finish
Pre-painted GI Sheet/Bare GI/SS304/SS316 (optional)

Fire Resistance
Class 1 (as per IS 12436/1988)

Environmental Compliance
CFC-free and eco-friendly insulation

Joint Type
Cam Lock / Tongue and Groove

Panel Length
Up to 12 meters

Core Density
40 ± 2 kg/m³

Panel Thickness
40mm, 60mm, 80mm, 100mm, 120mm (as per requirements)

COLD ROOM PUF PANEL Trade Information

Minimum Order Quantity
1 Square Foot

FOB Port
YES

Payment Terms
Cash in Advance (CID)

Supply Ability
2 Square Foots Per Week

Delivery Time
1 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
PLASTIC PACKING ROLL

Main Export Market(s)
Asia

Main Domestic Market
Delhi, Himachal Pradesh, Jammu and Kashmir, Rajasthan, Uttar Pradesh, Uttarakhand, Punjab, Haryana

Certifications
YES

About COLD ROOM PUF PANEL

Chiller Room

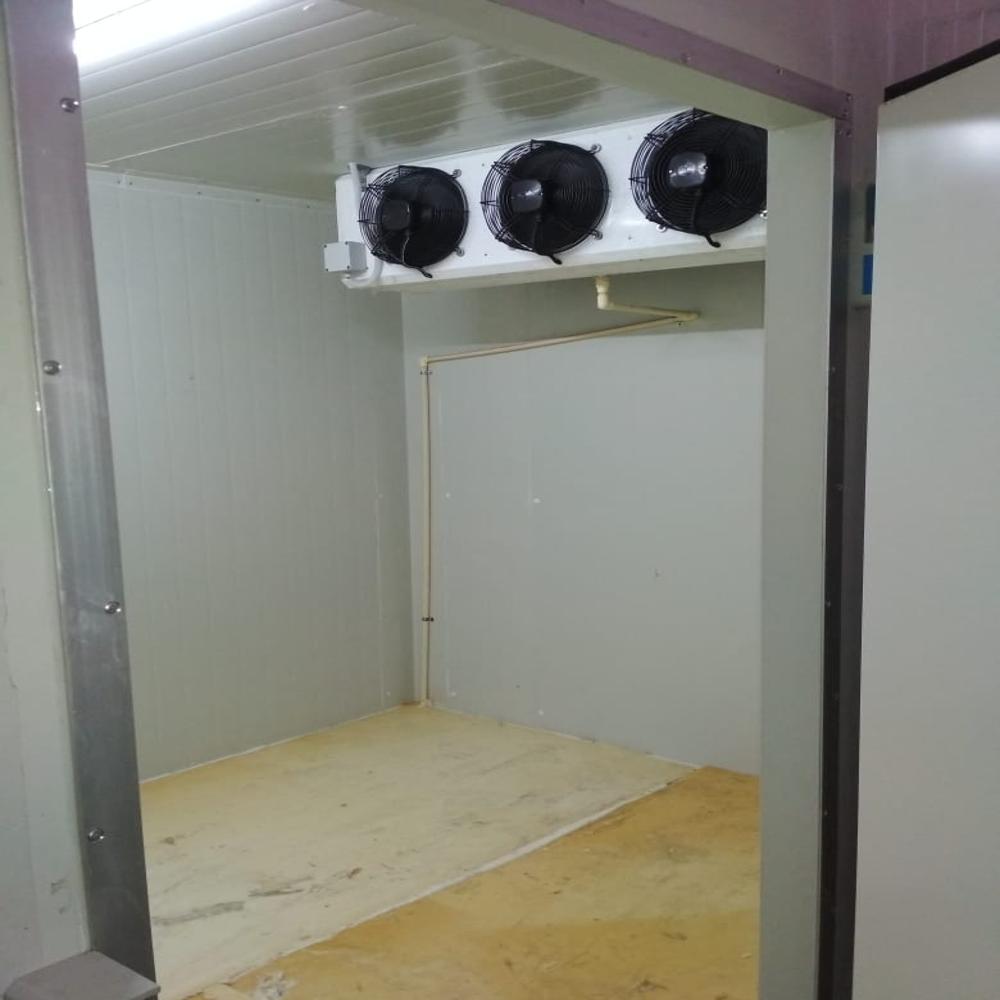

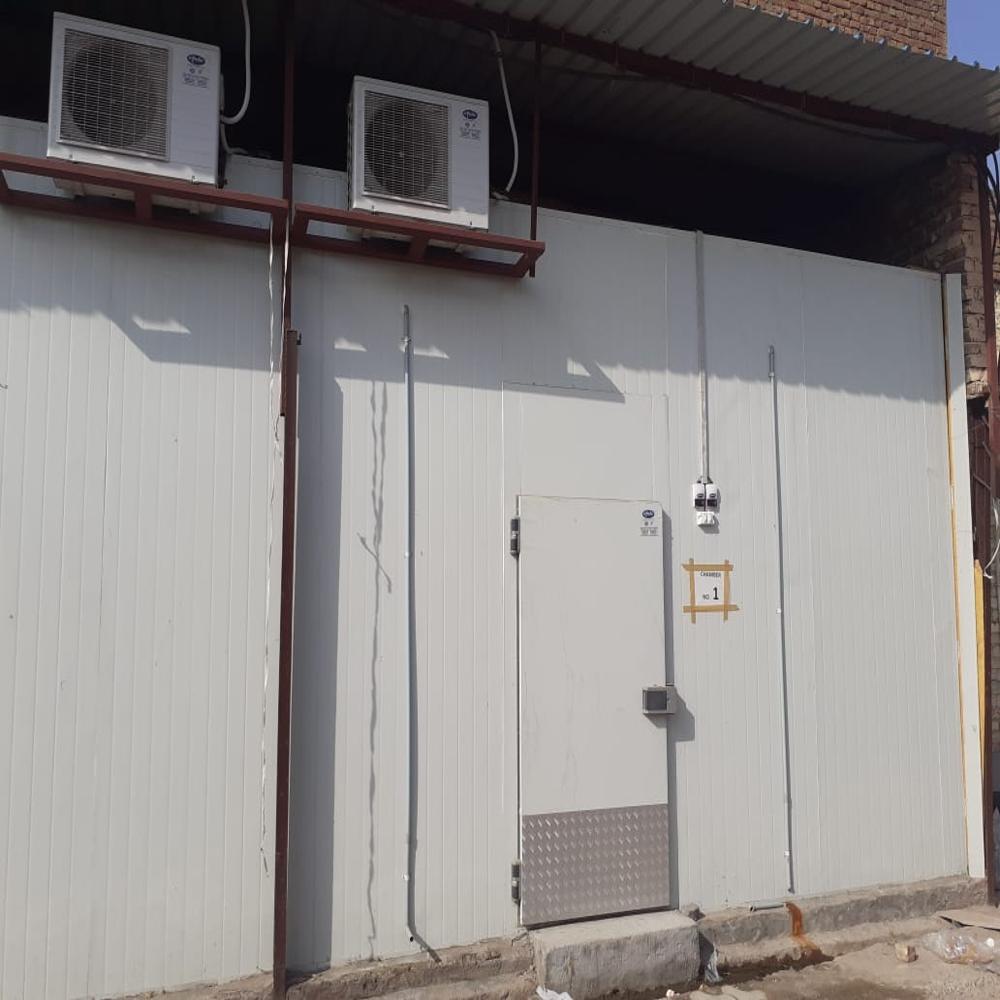

The evaporator unit will be ceiling suspended Mounted inside the cold room while the condenser will be located outside. Interconnecting piping will connect the indoor and outdoor unit.

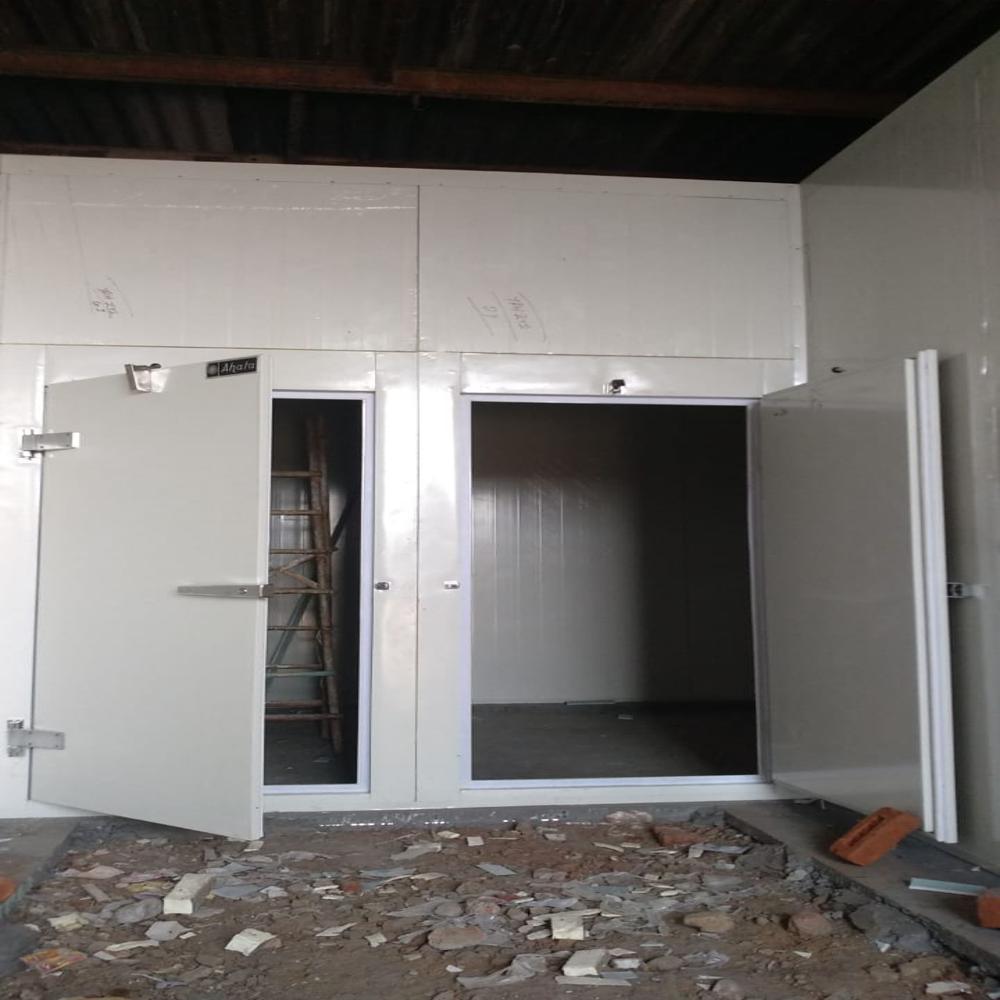

DELIGHT COLD ROOM FEATURES

Delight Cold Room assembled on Side Modular construction that enables quick and easy installation.

Flexible panel sizes.

Optimal temperature management over a wide range have multi-functional settings to suit different products.
Cam locking- It ensures that walls, ceilings, doors, corners and floors are perfectly aligned.

Sweep gasket maintains an airtight seal and helps maintain flexibility across temperatures.

Over Lap, Flush Type Door and Consists of sliding doors.

In some Cold Rooms, there is a view port that allows one to look inside the cold room without the need to open the door.

Temperature Range - 40 to +15C.

Puff Insulated Panels Cladding Material Preprinted SS Sheet, Stainless Steel.

Insulated Puff Panels Thickness 40mm, 50mm, 60mm, 80mm, 100mm, 120mm, 150mm.

Floor Type PU panel With Plywood and Aluminum Ch. Sheet and Insulation Bare Puf.

Condenser Type Air Cooled, Water Cooled, Evaporative Condenser.

Compressor Type- Commercial Hermetic Scroll, Reciprocating, Semi Hermetic.

All Three Phase Units Protect With Single Phase Preventer.

DELIGHT CONDENSING UNITS

High cooling capacity with reduced power consumption.

High and Constant Quality.

Fans with especially efficient low noise external rotor motors

Single Phase & Three Phase.

Extra Size Condenser with grooved copper tubes and Aluminum Fins and Big Size Drier Filter.

Reduction In Electricity Consumption.

Superior Thermal Insulation

Cold Room PUF Panels from Iceland are engineered with a 40 2 kg/m3 PUF core and offer outstanding insulation (thermal conductivity: 0.023 W/mK). This ensures optimal temperature retention in cold storage, freezing units, and pharmaceutical environments, efficiently maintaining conditions as low as -40C.

Versatile Panel Specifications

Available in customizable thicknesses from 40mm to 120mm and lengths up to 12 meters, these panels accommodate diverse project needs. Multiple surface finishes, including pre-painted GI and stainless steel options, enable tailored solutions for rigorous hygiene and durability requirements.

Ease of Installation & Longevity

Interlocking joints (cam lock or tongue and groove) enable quick, precise, and hassle-free assembly. Moisture resistance and robust construction grant each panel a reliable lifespan exceeding 15 years with minimal maintenance under standard operating conditions.

FAQ's of COLD ROOM PUF PANEL:

Q: How are Cold Room PUF Panels installed?

A: Cold Room PUF Panels use cam lock or tongue and groove interlocking systems, allowing for straightforward and secure installation. Panels are aligned and locked into position, creating a continuous insulated surface without thermal bridges.

Q: What are the standard and customizable sizes for these panels?

A: Standard dimension is 2m x 1m with thicknesses between 40mm and 120mm. However, panels can be custom-ordered up to 12 meters in length and in a range of widths and thicknesses according to project requirements.

Q: When should I choose a thicker PUF panel for my facility?

A: Thicker panels (such as 100mm or 120mm) are recommended for environments requiring lower temperature ranges or where higher insulation is needed, such as deep freezers or industrial cold rooms.

Q: Where can these panels be used?

A: These panels are suited for cold storages, freezer rooms, pharmaceutical warehouses, and food processing units-any location needing high thermal efficiency, moisture resistance, and hygienic surfaces.

Q: What are the main benefits of using Iceland's Cold Room PUF Panels?

A: These panels offer excellent thermal and acoustic insulation, high moisture resistance, customizable load bearing, easy installation, and a service life of over 15 years. They are CFC-free and eco-friendly, supporting sustainability initiatives.

Q: How are these panels environmentally compliant?

A: The PUF insulation is CFC-free, contributing to eco-friendly and sustainable building solutions by reducing environmental impact associated with traditional insulation materials.

Q: Are the panels suitable for high-humidity areas?

A: Yes, the panels are highly moisture-resistant, making them ideal for use in environments where humidity control is critical, such as cold or freezer storage and food processing plants.
